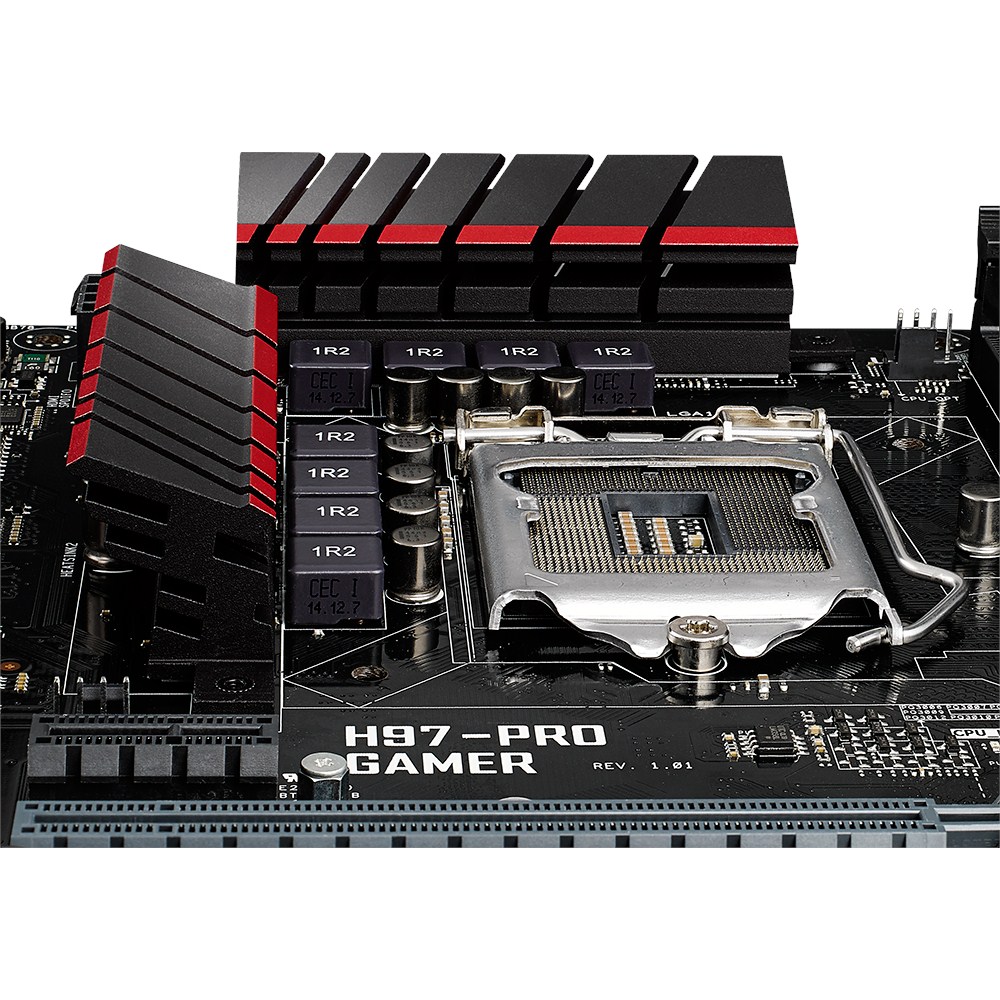

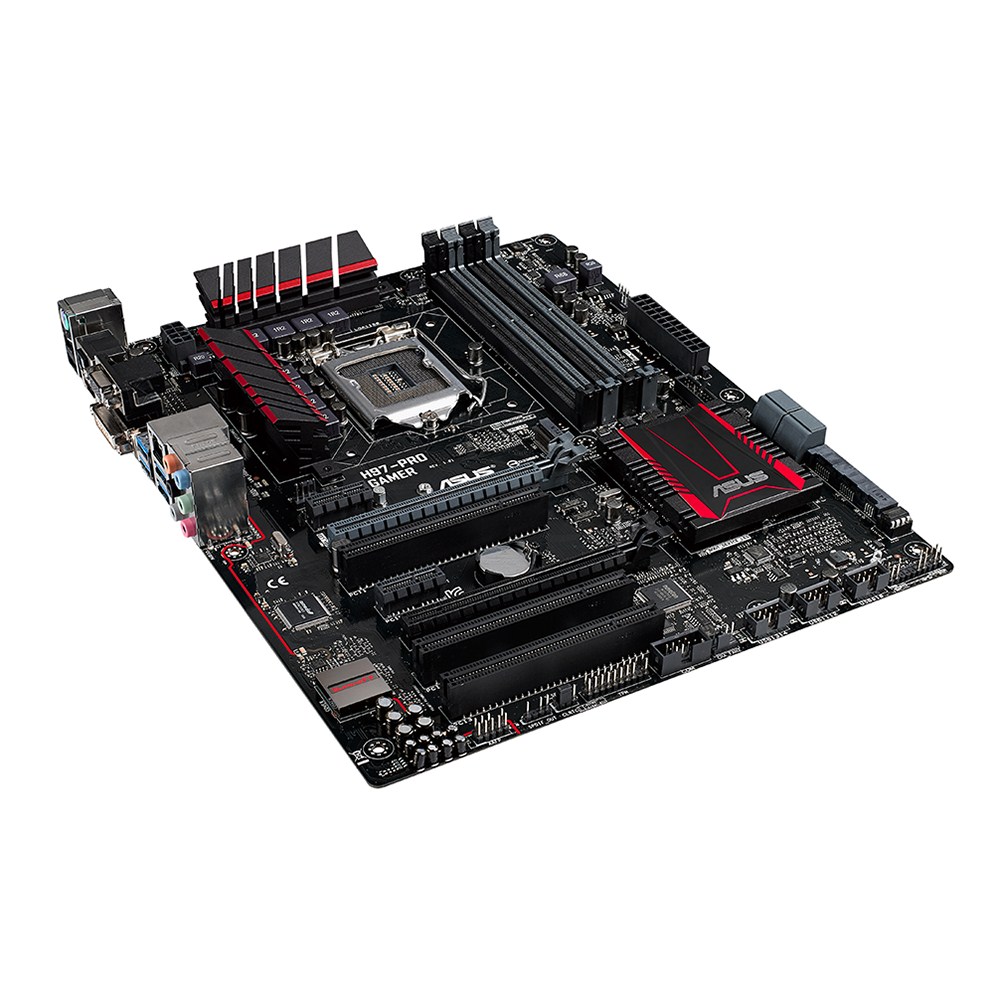

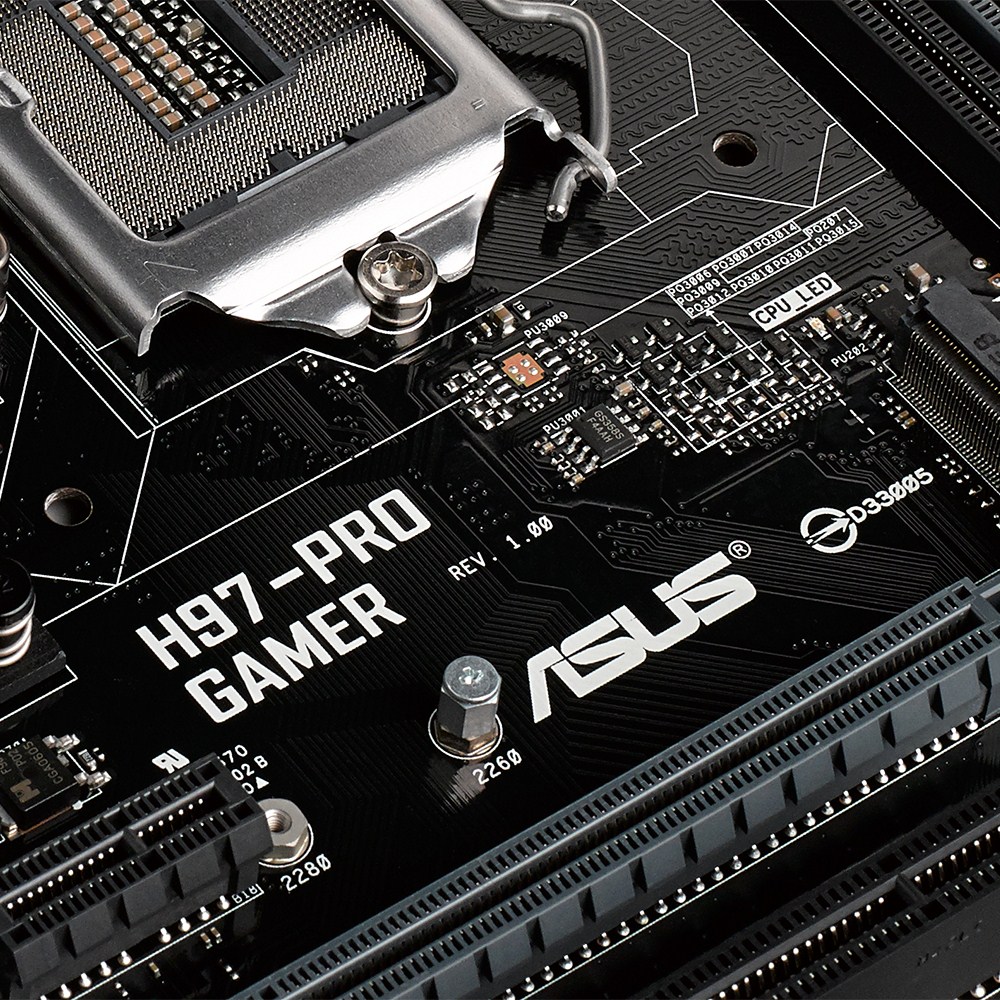

Mainboard ASUS H97 Pro Gamer

Mô tả chi tiết

Hãng sản xuất

ASUS

Chủng loại

H97 Pro

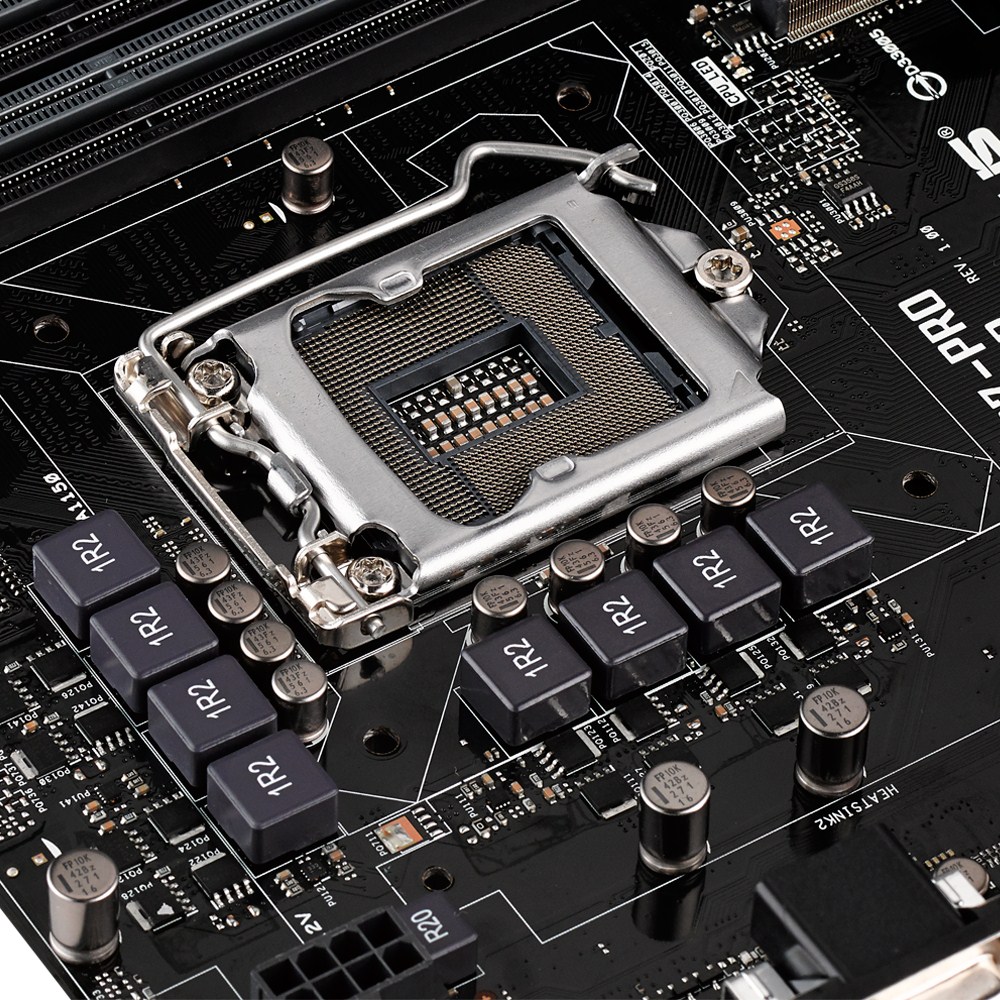

CPU hỗ trợ

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset

Bộ nhớ trong

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture

VGA onboard

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Âm thanh

Realtek® ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Khe mở rộng

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
3 x PCI

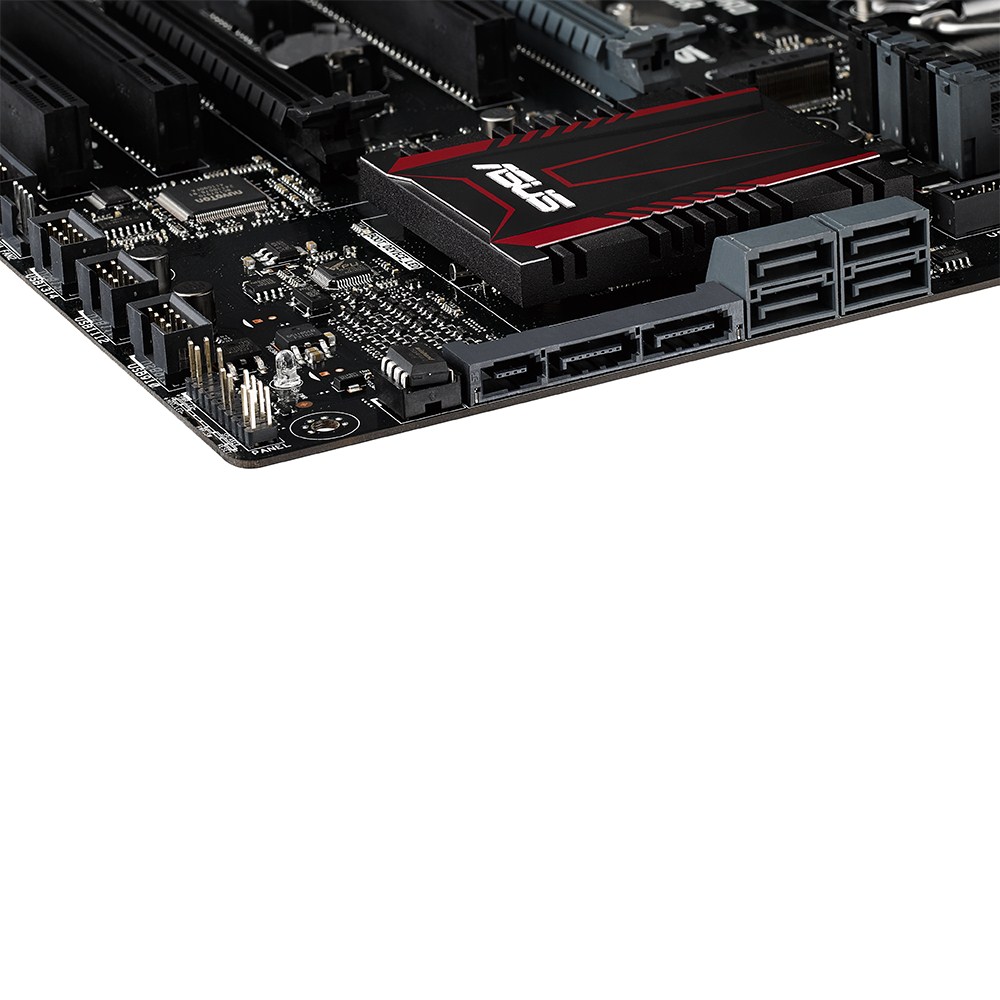

Chuẩn lưu trữ

4 x SATA 6Gb/s port(s), gray

1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports

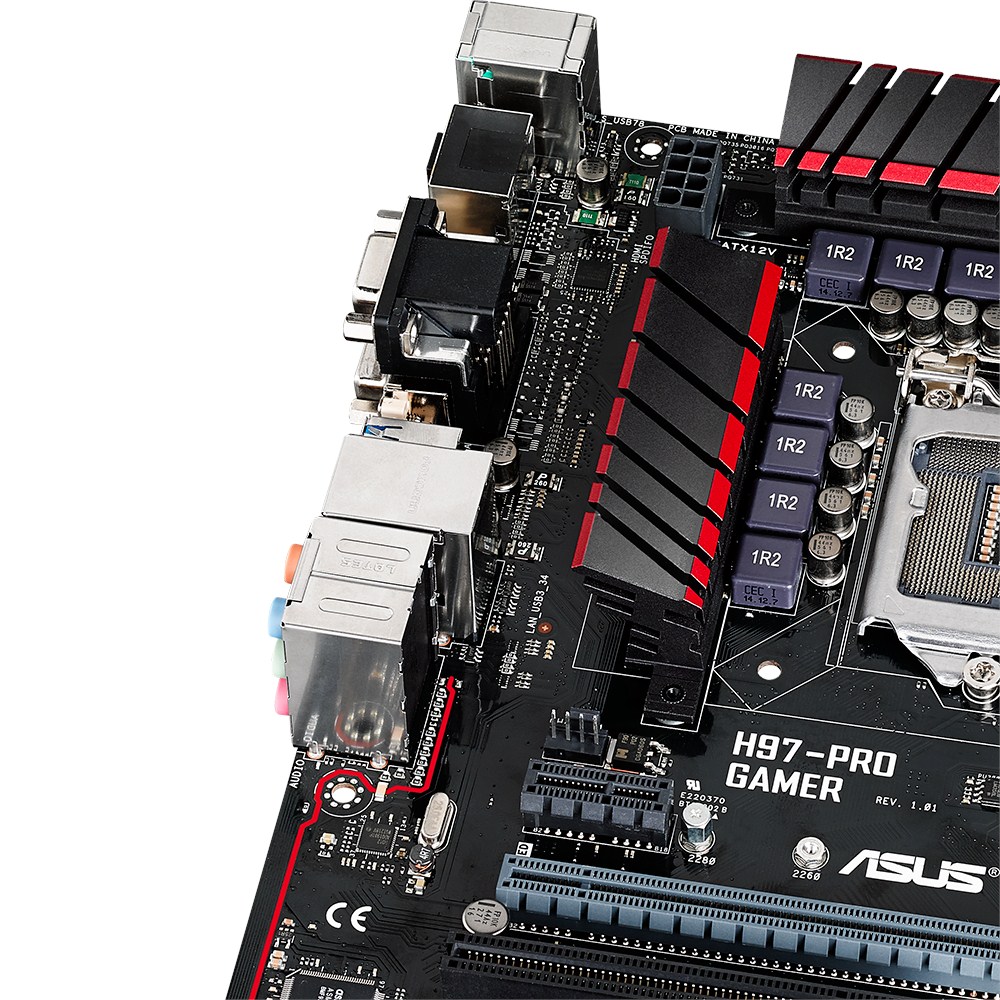

Cổng giao tiếp trước và sau

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)

Công nghệ tích hợp

ASUS 5X Protection, ASUS EPU, ASUS Digital Power Design, ASUS Exclusive Features: MemOK! AI Suite 3, Ai Charger+, Anti-Surge, ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, USB 3.0 Boost, Disk Unlocker, Turbo LAN, Interactive HomeCloud, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design,

Kích thước

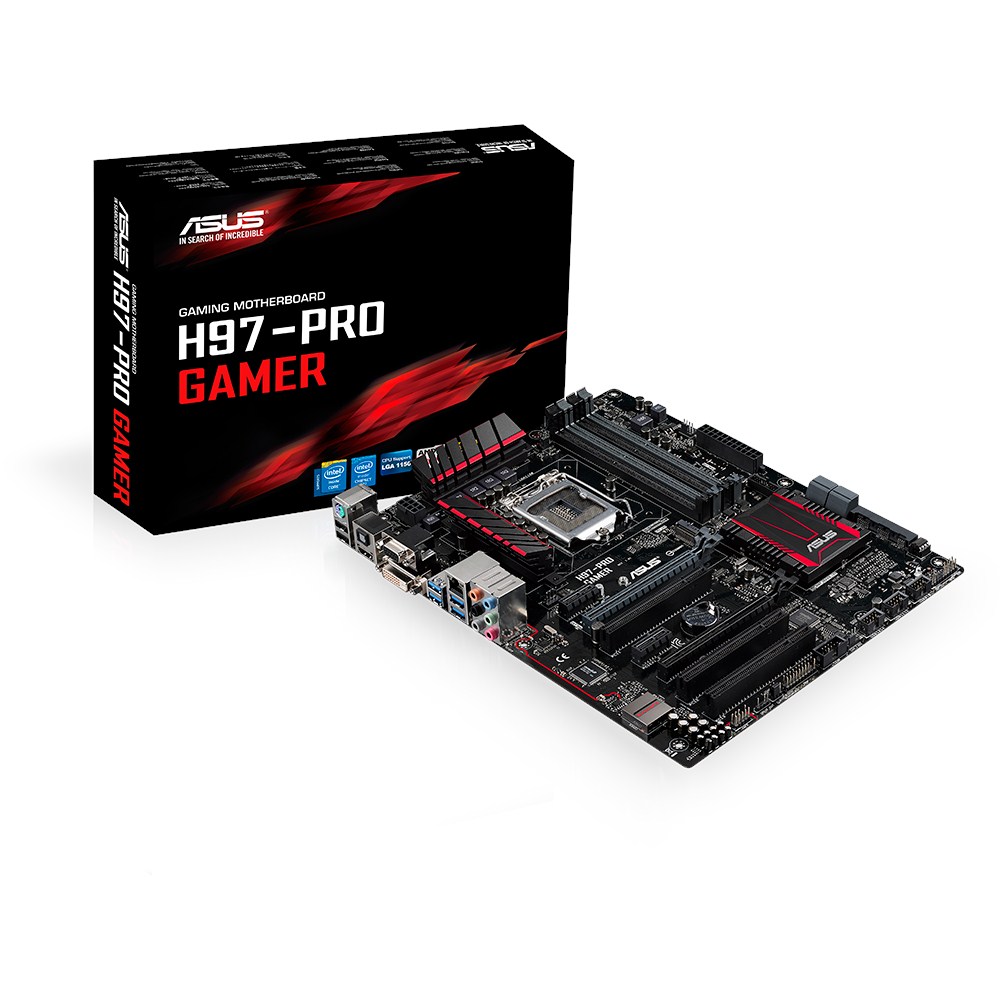

Phụ kiện đi kèm

Hộp, sách hướng dẫn sử dụng, đĩa driver, cable tín hiệu ộp, sách hướng dẫn sử dụng,
