    Mainboard Asrock H110M Combo-G

    Mã SP: ASRH110MC-G   |   Đánh giá: rate Xem đánh giá   |  Lượt xem: 998 lượt

    ASRock Super Alloy
    Supports 6th Generation Intel® Core™ Processors (Socket 1151)
    Digi Power
    Supports Dual Channel DDR4 2133 / DDR3 1866(OC)
    1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
    AMD Quad CrossFireX™, CrossFireX™
    Graphics Output Options: D-Sub, DVI-D, HDMI
    7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
    4 SATA3
    4 USB 3.0 (2 Front, 2 Rear)
    Supports Full Spike Protection, ASRock Live Update & APP Shop
    Kho hàng: Còn hàng
    Bảo hành: 0
    Giao hàng: Phí giao hàng và cài đặt : 30.000 VNĐ (Trong phạm vi 8km).
    1.985.000

    Hãy gọi ngay vào hotline để được tư vấn trực tiếp về sản phẩm

    Ms. Thu Hà

    0914713386

    Mr. Phương

    0915025669

    Thông tin chi tiết Bo mạch chủ (mainboard)

    Hãng sản xuất

    ASRock

    Model

    H110M-HDV/D3

    Đặc tính nổi bật

    ASRock Super Alloy
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop

    Chipset

    Intel® H110

    CPU hỗ trợ

    - Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
    - Supports Intel® Turbo Boost 2.0 Technology

    RAM hỗ trợ

    - Dual Channel DDR3/DDR3L Memory Technology
    - 2 x DDR3/DDR3L DIMM Slots
    - Supports DDR3/DDR3L 1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 32GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

    Đồ họa

    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
    - Pixel Shader 5.0, DirectX 12
    - Max. shared memory 1024MB*
    - Three graphics output options: D-Sub, DVI-D and HDMI**
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports Accelerated Media Codecs: HEVC, VP8, VP9
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    Lưu trữ

    - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

    Audio

    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
    - Supports Surge Protection (ASRock Full Spike Protection)
    - ELNA Audio Caps

    LAN

    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111E
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports LAN Cable Detection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

    Khe cắm mở rộng

    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
    - 2 x PCI Express 2.0 x1 Slots

    USB

    - 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    - 6 x USB 2.0 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

    Kết nối I/O bên trong

    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)
    - 1 x Chassis Fan Connector (4-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    Kết nối bảng phía sau

    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone

    Theo dõi phần cứng

    - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

    BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 5.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment

    Phần mềm đi kèm

    Software
    - ASRock Disk Health Report
    - ASRock USB Key
    - ASRock APP Charger
    - ASRock XFast LAN
    - ASRock XFast RAM
    - ASRock Fast Boot (Fast Boot, Restart to UEFI)*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock UEFI Tech Service
    - ASRock Easy Driver Installer

    Hệ điều hành hỗ trợ

    Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

    Kích thước

    M-ATX Form Factor

    Phụ kiện đi kèm

    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables

    Mô tả chi tiết


    I/O Armor
    A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

    High Density Glass Fabric PCB
    What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
    High Density Glass Fabric PCB
    Traditonal Glass Fabric PCB
    DDR4 Non-Z OC
    Overclocking DDR4 memory modules is no longer limited to Z170 models. With ASRock’s DDR4 Non-Z OC users may overclock the memory of H170/Q170/B150/H110/C232 models using certain memory sticks, such as Kingston or Samsung memory DIMMs. The enhanced CAS latency brings up to 5% performance boost.
    Supports 2 x DDR4 / 2 x DDR3
    Caught in a dilemma unsure of whether you should upgrade your memory or not? This motherboard supports both DDR3 and DDR4!

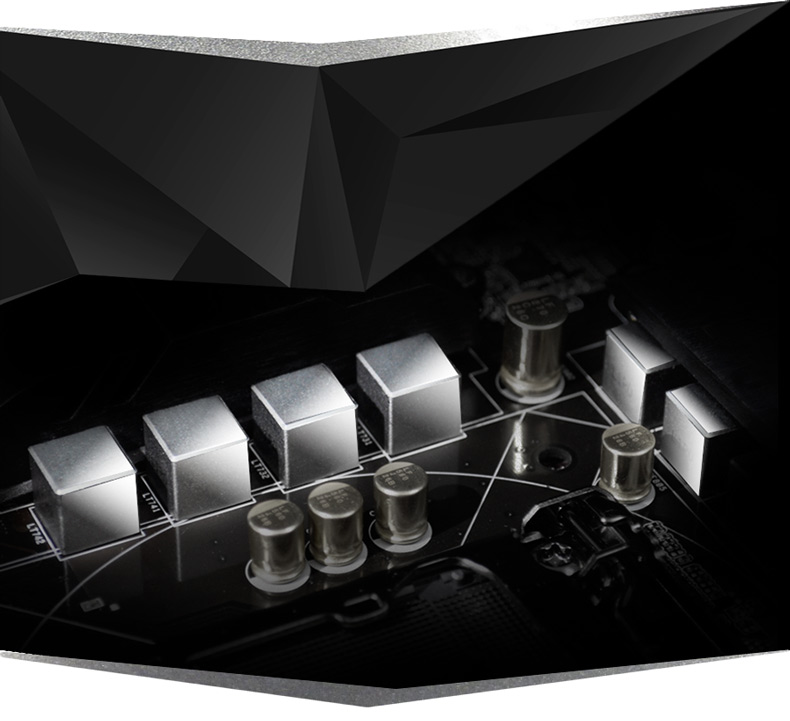

    6 Power Phase Design
    The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
    UEFI EZ Mode
    EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
    Intel® LAN
    Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
    Solid Capacitor Design
    ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
    ELNA Audio Caps
    Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
    Digi Power
    Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
    Win 7 USB Patcher
    Due to chipset limitation, when you want to install Windows® 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file, or check this page for more details on how to install Windows® 7 OS.
    Live Update & APP Shop
    ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
    Full Spike Protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
    ASRock Cloud
    ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously!
    *For more information please check:http://www.asrock.com/feature/cloud/index.html



    USB Key

    In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!



    Restart to UEFI

    Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.



    ASRock OMG (Online Management Guard)

    Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.



    UEFI Tech Service

    Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.



    Easy Driver Installer

    For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!


    ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.


    When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.


    This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
