| Hãng sản xuất | ASUS |
| Chủng loại | |
| CPU hỗ trợ | Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® Z170 |
| Bộ nhớ trong | 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) |
| VGA
| Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 4096 x 2160 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
| Âm thanh | Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Supports : Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- Absolute Pitch 192khz/24bit true BD lossless sound
Separate layer for left and right track, ensuring both sound deliver equal quality |
| Mạng | Intel® I219V, 1 x Gigabit LAN Controller(s)
Intel® I211-AT, 1 x Gigabit LAN
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility
ASUS LAN Guard |
| Khe mở rộng | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
4 x PCIe x1 |
| Chuẩn lưu trữ | Intel® Z170 chipset :
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*3
Supports Intel® Smart Response Technology*4
ASMedia® SATA 6Gb/s controller : *5
2 x SATA 6Gb/s port(s), black, |

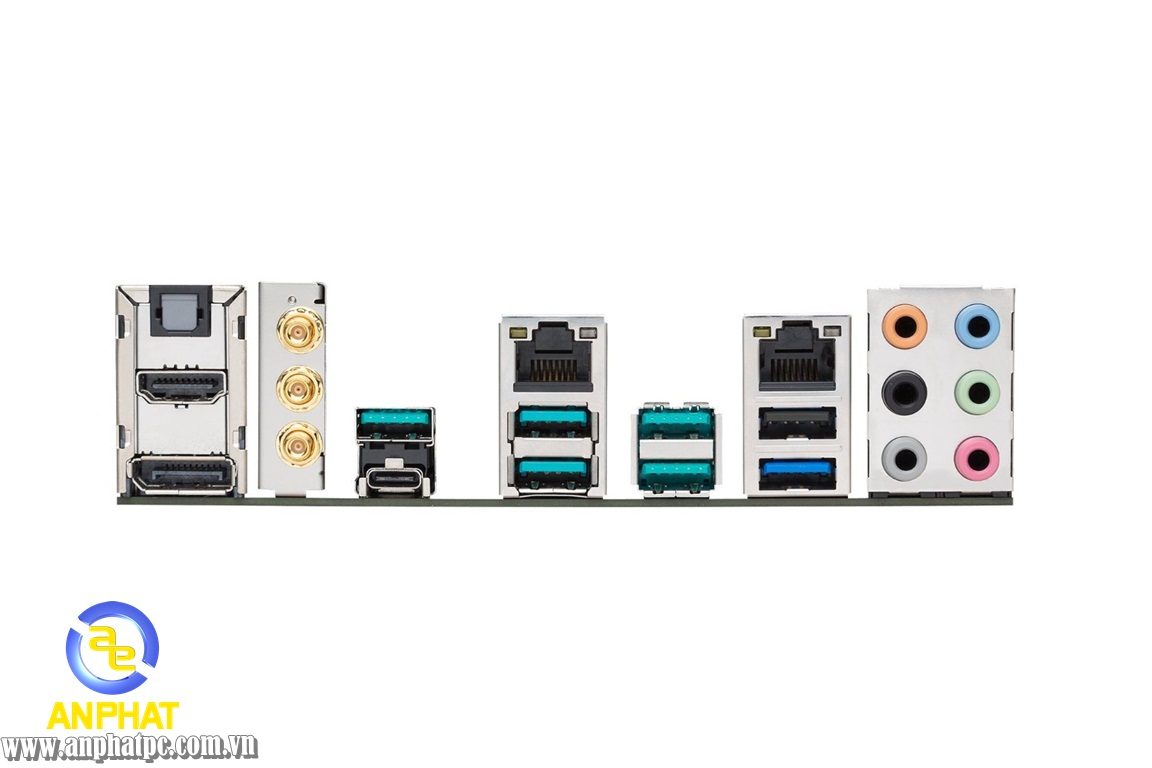

| Cổng giao tiếp trước và sau | 1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
5 x USB 3.1 (teal blue)Type-A
1 x USB 3.1 Type-C
1 x USB 3.0 (blue)
1 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
1 x 8-channel Audio I/O |
| Kích thước | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |

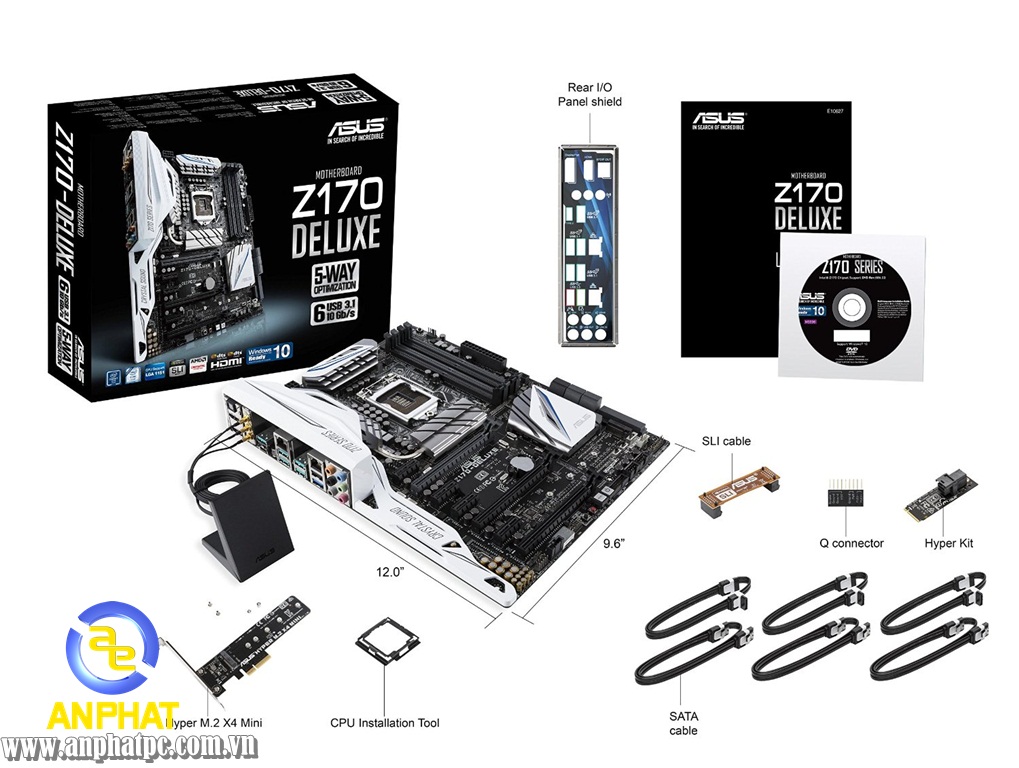

| Phụ kiện đi kèm | Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main |
